Franklin Home Power goes well beyond the demand for safe, reliable back-up to optimise daily household energy management, bringing you whole-home energy independence.

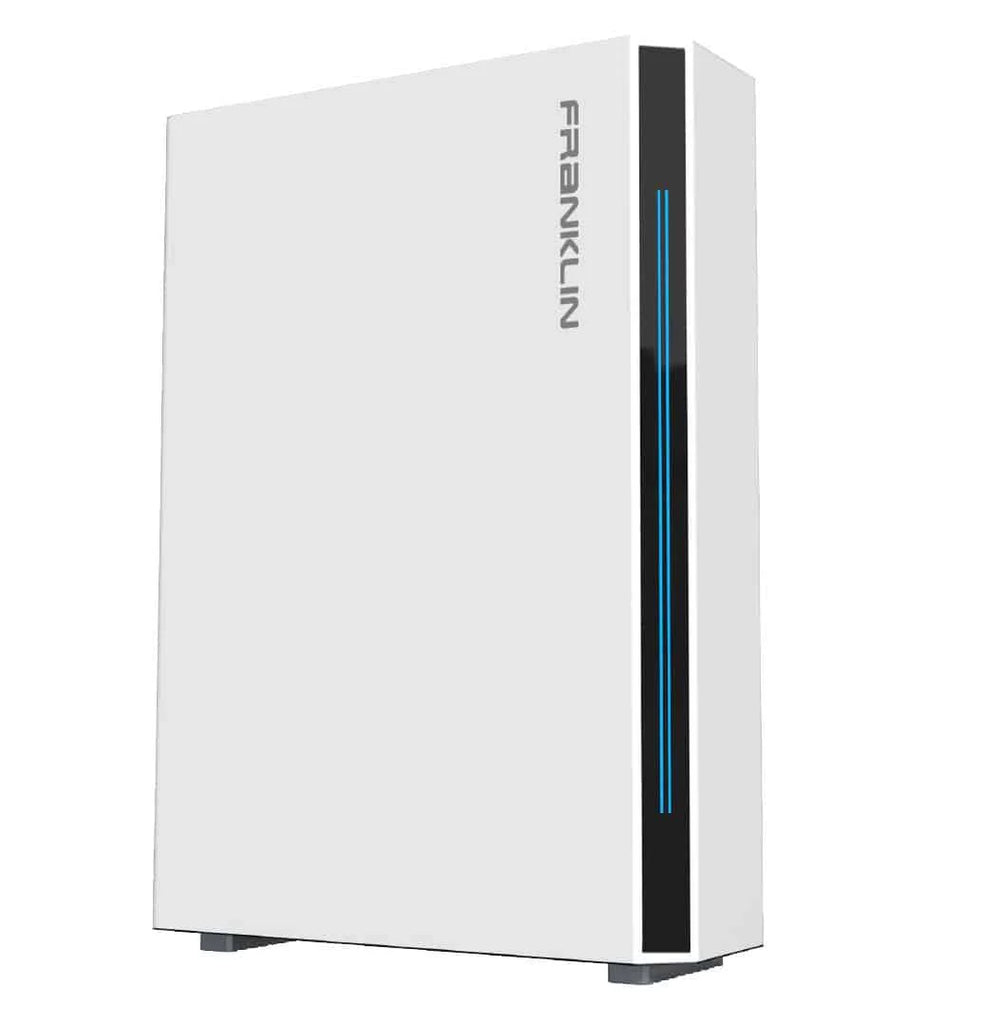

One of the core FHP components, the aPower is an LFP battery with a built-in advanced inverter.
Performance
- Energy capacity: 13.6kWh
- 5kW continuous power/10kW peak power (10s)
- 100% depth of discharge
- 89% round trip efficiency
Environmental
- Max. 4000m of altitude
- Operating temperature: -20°C to 50°C
- Ingress rating: IP67 (Battery and power converter system), IP56 (Wiring compartment)
Mechanical
- Dimension (H x W x D): 1150 x 750 x 290mm
- Weight: 185kg
- Installation: indoor or outdoor /wall mount or floor mount
- IEC / EN62109-1,
- IEC / EN62109-2,
- UL1973, IEC / EN62477-1,
- AS/NZS 4777.2:2020, IEC62040-1,
- IEC / EN62619
12 years product/performance warranty
